TES SERIES TRIAXIAL ELLIPTICAL VIBRATING SCREEN

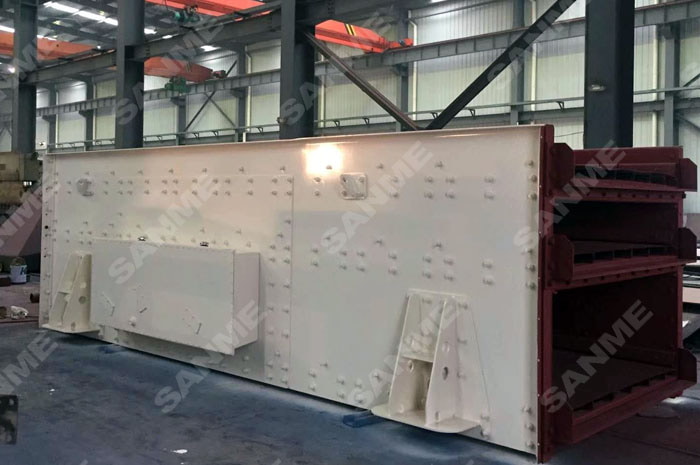

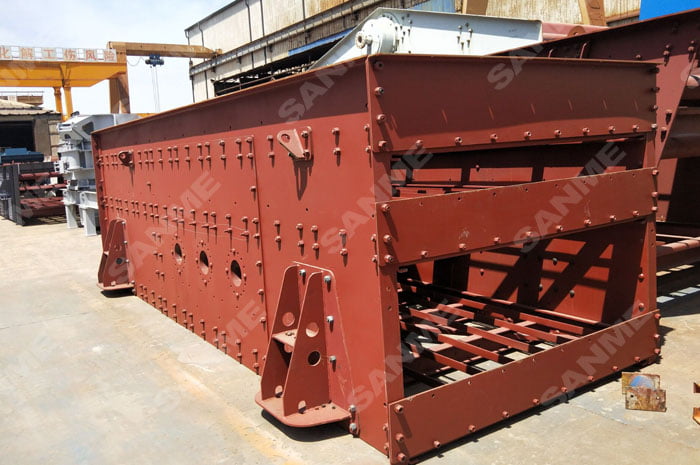

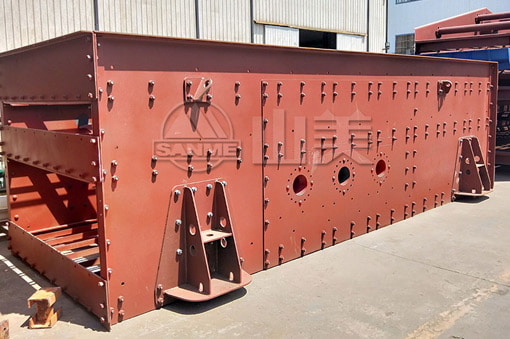

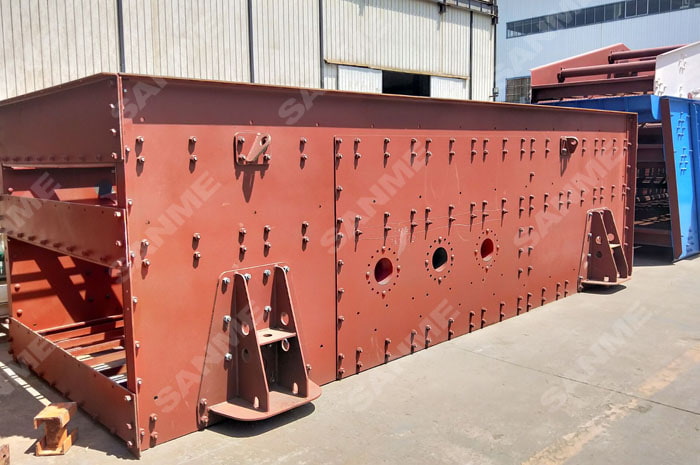

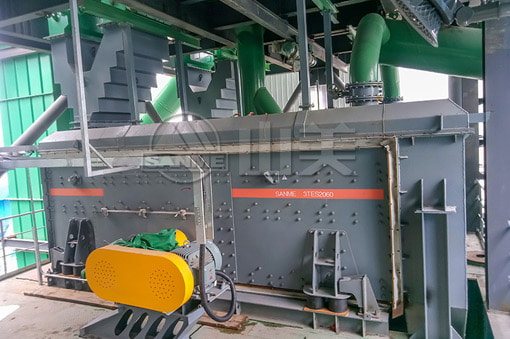

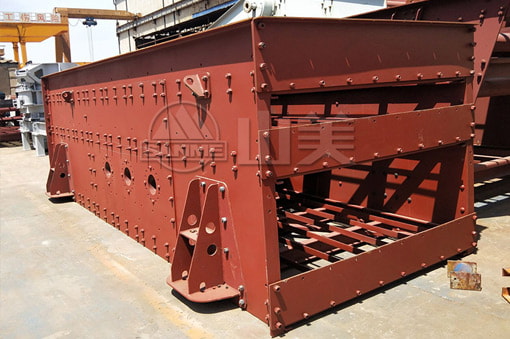

Product Display
PRODUCT DATA
Technical Data of TES Series Triaxial Elliptical Vibrating screen
| Model | Screen Specification Width*Length (m*m) | Screen Area (m*m) | Screen Mesh | Max. Feeding Size (mm) | Double Amplitude (mm) | Vibrating Frequency (r/min) | Capacity (t/h) | Motor Power (kw) | |
| Deck | Mesh | ||||||||
| 2TES1852 | 1.8*5.2 | 9.45 | 2 | Woven wire cloth | 150 | 14-18 | 645-875 | 120-250 | 22 |
| 3TES1852 | 1.8*5.2 | 9.45 | 3 |
Woven wire cloth |
14-18 | 120-250 | 30 | ||
| 2TES1860 | 1.8*6.0 | 10.8 | 2 | Woven wire cloth | 14-18 | 160-320 | 37 | ||
| 3TES1860 | 1.8*6.0 | 10.8 | 3 | Woven wire cloth | 14-18 | 160-320 | 37 | ||
| 2TES2060 | 2.0*6.0 | 12 | 2 | Woven wire cloth | 14-18 | 200-385 | 37 | ||
| 3TES2060 | 2.0*6.0 | 12 | 3 | Woven wire cloth | 14-18 | 200-385 | 45 | ||
| 2TES2460 | 2.4*6.0 | 14.4 | 2 | Woven wire cloth | 14-18 | 240-462 | 45 | ||
| 3TES2460 | 2.4*6.0 | 14.4 | 3 | Woven wire cloth | 14-18 | 240-462 | 45 | ||
The equipment capacities listed are based on instantaneous sampling of medium hardness materials. The above data is for reference only, please contact our engineers for equipment selection for specific projects.
FEATURES OF TES SERIES TRIAXIAL ELLIPTICAL VIBRATING SCREEN FEATURES
• High capacity, high screening efficiency;
• Moving track of the screening machine is elliptical, movement is stable, with low power consumption;
• Double amplitude (15-19mm), vibration direction angle (30°-60°), vibration frequency (645-875r/min) is adjustable, adjustment is convenient; materials screening is smooth, not easy to be plugged, blocked.
Advantages of TES Series Triaxial Elliptical Vibrating Screen
• Three axises drive can make the screen machine produce ideal elliptical movement, it possesses advantages of circular vibrating screen and linear vibrating screen, and the elliptical track and amplitude is adjustable, the vibrating track can be selected according to actual material, it possesses advantages for dealing with material hard for screening;
• Three axises drive compels synchronous vibration, which help the screen machine get stable working status, it is advantageous for processing large capacity screening;
• Three axises drive improves stress state of screen frame, alleviates load of single bearing, side plate has even force, decrease hard spot, improve stress conditions of screen frame, improve reliability and life of the screen machine, lay a theoretical foundation for upsizing of screen;
• Horizontal installation effectively decreases height of machine set, which can perfectly meet requirements of large and middle size mobile screen set;
• The bear shall be lubricated by thin oil, effectively decreases bear temperature, lengthens it's life;
• With the same screening area, capacity of elliptical vibrating screen can increase 1.3-2 times.
WORKING PRINCIPLE OF TES SERIES TRIAXIAL ELLIPTICAL VIBRATING SCREEN
• Structure: Composted of motor, rotation device, vibration exciter, screening box, rubble spring, under-bed, damper, etc.
• Working principle: Power is transferred through triangle belt to driven shaft of exciter, gear vibrator (speed ratio is 1), realize three axis rotate with the same speed, produce exciting force, be connected with bolt intensively, produce elliptical movement. The materials move speedily with the screening plant on the surface of the screen, quickly layered, through screen, forwarded, finally finish grading of materials.
