ZSWF/ZSFA SERIES HEAVY FEEDING SCREEN
PRODUCT DISPLAY
PRODUCT DATA
Technical Data of ZSWF Series Heavy Feeding Screen
| Model | Max Feed Size (mm) | Throughput (t/h) | Motor Power (kw) | Overall Dimension (LXWXH) (mm) | Feed trough size (mm) |
| ZSWF6030 | 400 | 400-560 | 22 | 6223*3280*1999 | 6000*1300 |
| ZSWF6050 | 450 | 400-560 | 30 | 6223*3560*1910 | 6000*1500 |
Technical Data of ZSFA Series Heavy Feeding Screen
| Model | Motor Power (kw) | Max Feed Size (mm) | Throughput (t/h) |
| ZSFA6013 | 2*15 | 750 | 400-560 |
| ZSFA6015 | 2*18.5 | 1000 | 460-660 |
| ZSFA6020 | 2*22 | 1400 | 600-1000 |
The equipment capacities listed are based on instantaneous sampling of medium hardness materials. The above data is for reference only, please contact our engineers for equipment selection for specific projects.

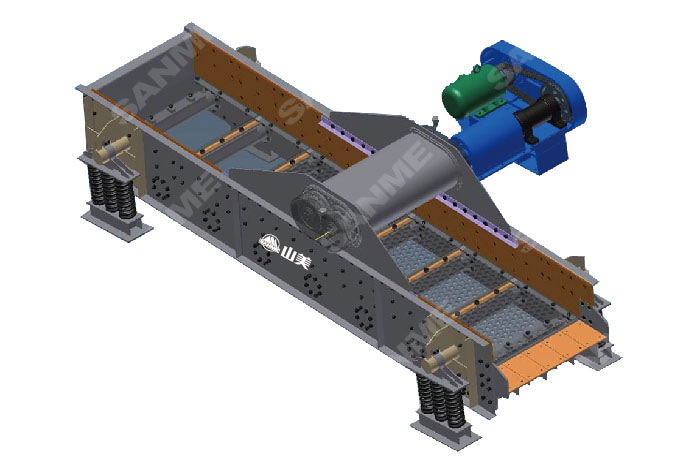

FEATURES AND BENEFITS OF ZSWF SERIES HEAVY FEEDING SCREEN
• Small installation space.
• High processing capacity.
• Screen mesh is made of steel plate mesh.
• Stable amplitude and reliable operation.

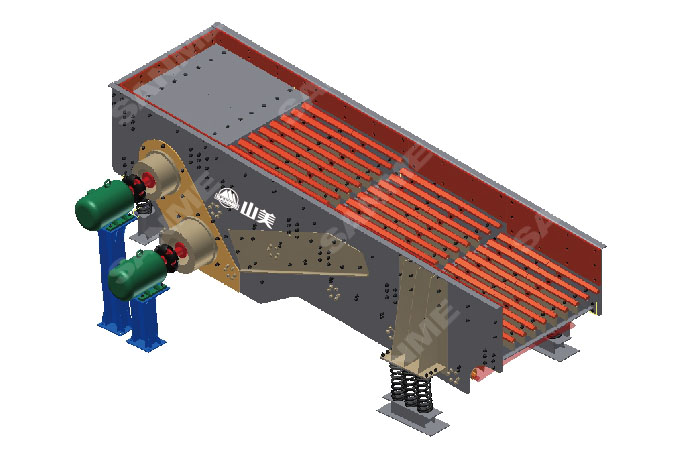

FEATURES AND BENEFITS OF ZSFA SERIES HEAVY FEEDING SCREEN
• Adjustable bar spacing and amplitude.
• Small installation space.
• High processing capacity.
• Motor directly drives.
• Screen mesh can be optionally selected under the bar so as to screen the needed fine materials.
• Stable amplitude, reliable operation and strong material adaptability.
